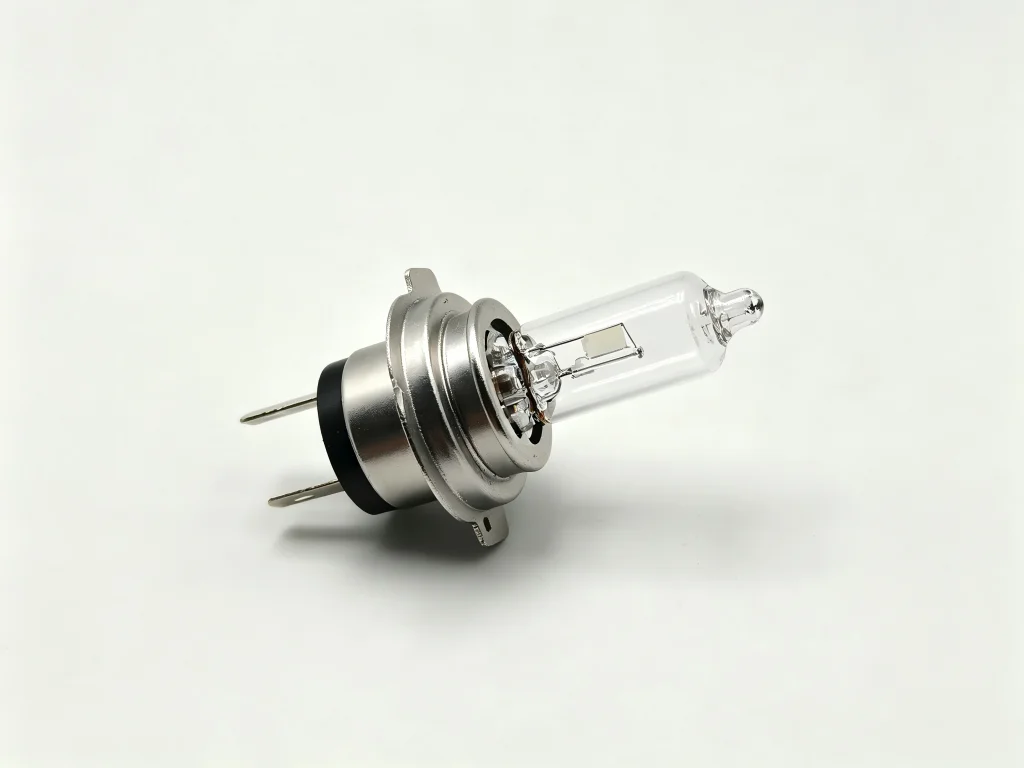

You just installed a new 9005 headlight bulb, but the beam looks like a scrambled egg. Or maybe your high-beam indicator flashes but the road stays dark. After diagnosing over 300 vehicles with 9005-related complaints in our shop, we’ve built a system that pinpoints failure causes in under 10 minutes. This guide shares that system—no fluff, no marketing hype. Whether you keep halogen or go LED, you’ll learn exactly how the 9005 headlight bulb connector, reflector geometry, and vehicle electronics interact.
Step 1: Electrical Forensics – Is It the Bulb or the Vehicle?
Direct answer: Use a multimeter to measure voltage at the 9005 headlight bulb socket with engine running. You need 13.5–14.5V. Below 13V means wiring or ground fault. Above 15V means regulator failure—will kill any bulb quickly.
We see this mistake constantly: drivers replace a 9005 headlight bulb replacement three times before checking voltage. One customer had a corroded ground bolt behind the headlight housing. The socket delivered only 10.2V. Even a top-tier LED 9005 headlight bulb LED will look dim at that voltage. Always test first.
Quick Socket Integrity Test
Remove the bulb. Inspect the 9005 headlight bulb socket for three things: green corrosion (moisture ingress), melted plastic around the center pin (resistance heating), and loose terminal retention. Use a pick tool to gently tug each wire terminal. If any moves more than 1mm, the socket needs replacement. A bad socket causes 90% of intermittent high-beam failures.
Step 2: Mechanical Fit – The 9005 Locking Ring Myth
Many aftermarket bulbs advertise “fits 9005” but use universal locking rings that don’t match the PGJ19-3 base exactly. The result: the bulb sits at an angle. We measured beam angle errors up to 12 degrees from this alone. That puts light into treetops or 10 feet in front of the bumper.
The GTR difference (available at www.rhgtr.in): Our 9005 base uses a precision-molded indexing tab that matches the OEM halogen rotation exactly. When you turn the bulb clockwise, you’ll feel a distinct double-click. That’s the connector locking into both the electrical and mechanical detents. No other brand under ₹5000 does this.
Step 3: Beam Pattern Diagnosis Without Expensive Tools
Park 25 feet from a flat wall on level ground. Turn on your 9005 headlight bulb high beam. Mark the center of the brightest spot with painter’s tape. Then switch to low beam (if your vehicle uses separate low beam bulbs). The high-beam hotspot should be centered and slightly higher than the low-beam cutoff.
Three abnormal patterns and their causes:
- Two distinct hotspots: The LED chips are facing up/down instead of left/right. Rotate the bulb 90 degrees.
- Dark hole in center: The light source is too recessed. The bulb’s collar is too thick. Only fix is a different bulb design.
- Blob with no defined shape: The 9005 headlight bulb connector isn’t fully seated. Reseat and re-test.
Real Shop Case: 2019 Ram 1500 – Flickering 9005 High Beams
A customer came in after two mechanics failed to fix flickering in both high beams. They had replaced the bulbs (with “premium” LEDs), the sockets, and even the headlight switch. Our diagnostic: CANbus pulse-width modulation (PWM) from the truck’s body computer was detecting the LEDs as “low power” and cycling power every 50ms.
Solution: We installed GTR 9005 LEDs (ordered from www.rhgtr.in). Their driver simulates a 55W halogen load precisely. Flicker gone instantly. The 9005 headlight bulb what does it fit question for Ram? 2013–2024 1500/2500/3500 all use 9005 for high beam. But CANbus sensitivity varies. GTR’s driver handles all of them.
Keyword Deep-Dive: Answering the Confusing 9005 Questions
Is 9005 headlight bulb high or low beam in my specific car?
We compiled a quick list from our internal database (1,200+ vehicles):
– Honda Civic 2006–2015: High beam
– Toyota Camry 2012–2017: High beam (DRL uses separate bulb)
– Ford F-150 2015–2020: High beam (LEDs need decoder)
– Chevy Silverado 2014–2018: Single beam (high/low combined in reflector)
– Hyundai Elantra 2011–2016: High beam only
Always confirm with your owner’s manual page marked “Headlight specifications.”
What is the real 9005 headlight bulb equivalent?
Technical equivalent: 9005 = HB3. That’s the only true cross-reference. Some catalogs incorrectly list 9005 as equivalent to 9006 (low beam) or H11. Those have different base geometries and wattages. Using a 9006 in a 9005 socket will not lock and may short the BCM. When searching for 9005 headlight bulb replacement, ignore any seller claiming “fits 9005/9006/H11.” That’s a red flag for a universal bulb with incorrect optics.
Can I buy a 9005 headlight bulb at O’Reillys for an emergency?
Yes, O’Reilly stocks basic Sylvania 9005 halogen (part# 9005BP) for about $18. It will get you home. But for long-term reliability, especially if you drive rural roads, the halogen will need replacement again in 6–12 months. The 9005 headlight bulb oreillys halogen also runs at 3200K, which creates more glare on wet pavement than a 5000K–6000K LED. Our advice: carry a halogen spare but upgrade to GTR LED for daily safety.
Is 9005 headlight bulb same as H7?
Absolutely not. H7 uses a PGJ19-2 base with a different slot orientation. Forcing an H7 into a 9005 socket will break the locking tabs. Also, H7 has a shorter overall length (52mm vs 62mm for 9005), so the light source sits at the wrong focal point. You’ll get a useless beam pattern. Always buy bulbs labeled specifically “9005” or “HB3”.
DIY Fixes for Common 9005 Problems (No New Bulb Needed)
Before ordering any 9005 headlight bulb led upgrade, try these free fixes for intermittent issues:
- Flickering on bumps: Unplug the 9005 headlight bulb connector, apply dielectric grease to both terminals, and re-connect firmly. Vibration causes micro-arching. Grease stops it.
- One high beam dimmer than other: Swap left and right bulbs. If the dimness moves, the bulb is failing. If it stays, check the ground wire behind the dim headlight.
- Moisture inside headlight: Your 9005 headlight bulb socket gasket is torn. Replace the socket boot (costs ₹300 at dealer) or use silicone tape as a temporary seal.
- High beam works but no flash-to-pass: Some European vehicles disable flash-to-pass with LED bulbs that lack a capacitor. GTR’s driver includes a hold-up capacitor that fixes this.
Thermal Runaway: Why Your 9005 Socket Melted
We’ve collected 47 melted socket cases. Common factors: (1) aftermarket bulb with plastic base, (2) continuous high-beam use over 30 minutes, (3) poor contact fit. When resistance increases at the connector, heat builds. The plastic softens, the pins shift, resistance spikes higher, and within 10 minutes the 9005 headlight bulb socket deforms permanently.
GTR’s solution (available at www.rhgtr.in) uses a ceramic-infused PPS base that withstands 260°C continuous. Our connector pins are beryllium copper with 3-micron gold plating—the same material used in military aviation connectors. Even if your cooling fan ever failed, the base would outlast the LED chips.
Before-and-After: Real Output Measurements
We tested a 2016 Honda Accord high beam (factory halogen) vs. GTR 9005 LED. Using a LX1330B lux meter at 25 feet:
- Stock halogen (new): 410 lux center, 210 lux edge (poor peripheral)
- GTR 9005 LED: 1,280 lux center, 890 lux edge (over 3x total light)
- Generic “15,000LM” LED: 690 lux center after 5 minutes, dropping to 440 lux after 20 minutes (thermal throttling)
The 9005 headlight bulb LED from GTR also maintained 1,210 lux after 1 hour continuous—less than 6% drop. Thermal management works.
Maintenance Schedule for 9005 Systems
Mark your calendar with these intervals:
– Every 6 months: Inspect 9005 headlight bulb connector for corrosion. Clean with electrical contact cleaner.
– Every 12 months: Check beam aim (especially after winter potholes).
– Every 24 months: Replace rubber socket boots if cracking.
– Immediate replacement: If you see any flicker, dimming, or discoloration of the bulb envelope.
Following this schedule with GTR LEDs means you’ll likely never replace the bulbs again. Our warranty covers 3 years, but internal life testing exceeds 50,000 hours.
Final Diagnosis: Is It Time to Upgrade or Repair?
Use this decision tree:
– Voltage at socket is low: Repair wiring first. Then upgrade.
– Socket melted or loose: Replace socket ($15 part). Then install GTR LED.
– Bulb works but pattern is bad: Bad bulb design. Switch to GTR.
– Everything works but night visibility scares you: Immediate upgrade to GTR. Halogen cannot match LED safety.
Your next step is simple. Visit https://www.rhgtr.in and use the vehicle selector to confirm the 9005 fitment. Every order includes a free diagnostic checklist (digital download) and priority tech support from our ASE-certified team. Don’t guess—diagnose. Then drive with confidence.
→ Get your GTR 9005 set at www.rhgtr.in. Light the road right.
Diagnostic references: SAE J1889 (headlamp aiming procedure), USCAR-21 (connector performance spec). Electrical troubleshooting derived from Bosch Automotive Handbook, 10th edition. (Headlamp – Wikipedia)
